I-7565-DNM

I-7565-DNM can represent an economic solution of DeviceNet application and be a DeviceNet master device on the DeviceNet network. It is a "Predefined Master-Slave connection Set". I-7565-DNM supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications.

Besides, I-7565-DNM uses the new CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function.It can be installed on almost any windows-based system, for example Win98/Win2000/WinXP. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, I-7565-DNM is developed for this purpose.

Applications:

• Industrial Machinery
• Building Automation
• Medical
• Maritime
• Restaurant Appliances
• Laboratory Equipment & Research

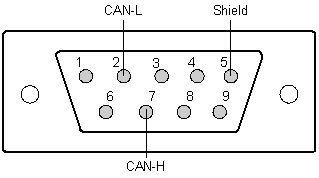

Features:

• Fully compliant with USB 1.1/2.0(Full Speed)
• No external power supply is required as I-7565 takes it's power from the USB bus # DeviceNet Version: Volume I & II, Release 2.0
• Programmable Master MAC ID and Baud Rate.
• Baud Rate: 125k, 250k, 500k
• Support Group 2 and UCMM connection
• I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
• I/O Length: 512 Bytes max (Input/Output) per slave
• Slave Node : 63 nodes max
• Support Auto-Search slave device function.
• Support on-line adding and removing devices
• Support Auto-detect Group 2 and UCMM device
• Auto-Reconnect when the connection is broken
• Status LED: RUN, MS, NS
• Free Software development tools for Windows
• Windows 98/ME/2000/XP/Linux drivers supported

Firmware Features:

• Programmable Master MAC ID.
• Programmable transfer-rate 125K, 250K, 500K.
• Each port support maximum nodes up to 64
• Support Group 2 Only Server functions
• Support UCMM functions
• Predefined Master-Slave Connection Set
• The maximum Fragment number is (Input/Output) up to 64
• Support I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
• Support Auto-Scan slave device function.
• Support on-line adding and removing devices.
• Support Auto-Reconnect when the connection is broken.
